How to Set Up a Vertical Mouse Correctly (2026)

Knowing how to set up a vertical mouse correctly means the difference between ergonomic relief and wasted money. Position your desk so your elbow sits at 90°, place the mouse at keyboard height, align your forearm parallel to the floor, adjust DPI for your work type, and configure buttons. Get these right to cut wrist strain from day one.

By Dr. Alex Chen, Ergonomics & Health Tech Researcher · Last updated March 14, 2026

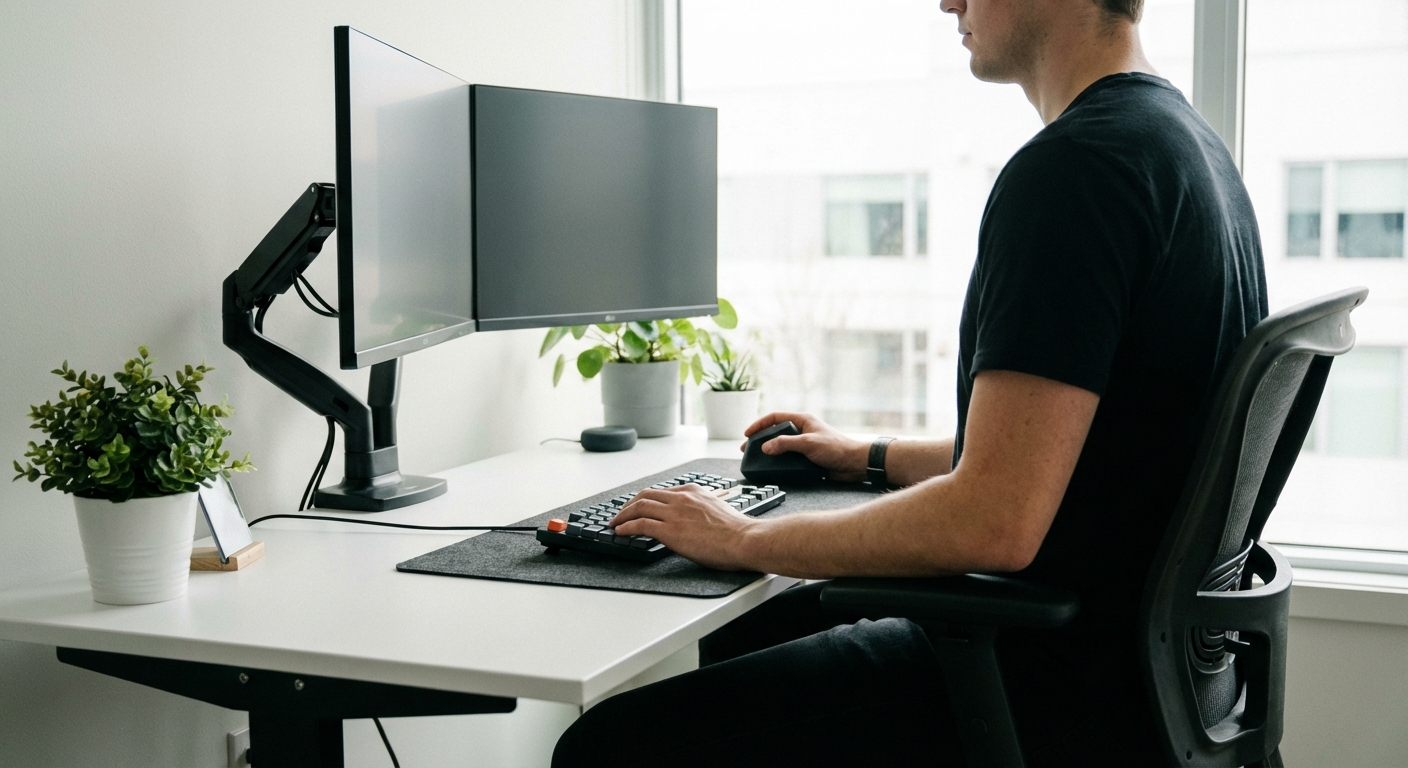

Correct vertical mouse workstation setup: neutral wrist, elbow at 90°, monitor at eye level

Table of Contents

• Why Correct Setup Matters
• Step 1 — Position Your Desk and Chair First
• Step 2 — Place the Mouse at the Right Height
• Step 3 — Align Your Arm and Elbow
• Step 4 — Adjust Mouse Sensitivity and DPI
• Step 5 — Configure Software and Buttons
• Common Setup Mistakes to Avoid
• Vertical Mouse Setup for Different Work Types
• How Long Until You Feel the Difference?
• Frequently Asked Questions
• Conclusion
• Sources & Methodology

---

Why Correct Setup Matters

Switching to a vertical mouse is a smart move — it places your hand in a natural "handshake" position that reduces forearm pronation and the muscular tension associated with traditional flat mice. Research published in the International Journal of Industrial Ergonomics confirms that vertical mice reduce muscle activity in the extensor carpi ulnaris compared to conventional mice (Aaras et al., 2002). But these benefits only materialise if the rest of your workstation supports neutral posture.

A vertical mouse used at the wrong height, with a poor chair setting, or with default software configuration can actually introduce new strain patterns. Your wrist might hyperextend to reach a surface that's too high. Your shoulder might hike up to compensate for a mouse placed too far away. Your forearm might fatigue from fighting oversensitive pointer acceleration.

If you already experience wrist pain and are wondering whether a vertical mouse can help, our guide on whether vertical mice help wrist pain reviews the clinical evidence. The short answer: yes, but only with correct setup. That's what this guide delivers — a complete, step-by-step ergonomic setup protocol that ensures your vertical mouse actually does what it's designed to do.

OSHA's ergonomic guidelines emphasise that no single piece of equipment fixes poor posture in isolation. The workstation is a system — chair, desk, keyboard, mouse, and monitor must work together. Getting your vertical mouse setup right means getting the entire chain right, and that's exactly what we'll walk through.

Step 1 — Position Your Desk and Chair First

Before you even unbox your vertical mouse, your desk and chair need to be in the right relationship with each other and with your body. This is the foundation everything else builds on.

Chair Height

Sit in your chair and plant your feet flat on the floor. Your thighs should be roughly parallel to the floor, and your knees should form a 90–110° angle. If your feet don't reach the floor, use a footrest — dangling feet cause you to compensate with your upper body, which cascades into shoulder and wrist strain.

Desk Height

With your chair correctly adjusted, let your arms hang naturally at your sides and bend your elbows to 90°. Your forearms should now be roughly level with the desk surface. For most adults, this means a desk height of 28–30 inches (71–76 cm). If your desk is too high, lower your chair and add a footrest, or invest in a height-adjustable desk. If your desk is fixed and too high, an adjustable keyboard tray mounted under the desk is a reliable alternative.

Keyboard and Mouse Plane

Your keyboard and mouse must sit on the same plane — the same height, the same surface. If your keyboard is on a tray but your mouse is on the desk above, you're introducing a height differential that forces your shoulder to shrug every time you move to the mouse. This asymmetry is one of the most common causes of mouse-related shoulder pain, and it's entirely avoidable.

Sit-Stand Desk Users

If you use a sit-stand desk, set separate height presets for sitting and standing. When standing, the same 90° elbow rule applies: forearms parallel to the floor, shoulders relaxed. Many people set their standing height too high, which leads to wrist extension. Test your standing height with the "drop test" — let your arms hang, bend the elbows, and see where your hands naturally land. That's where your desk surface should be.

Step 2 — Place the Mouse at the Right Height

With your desk and chair dialled in, it's time to place the vertical mouse. The vertical mouse should sit directly beside your keyboard, on the same surface, with no height difference between the two.

The 90° Elbow Check

Grip the mouse as you normally would. Look at your elbow from the side. It should form an angle very close to 90° — neither pinched tight nor splayed wide. If the angle is significantly less than 90° (forearm angled upward), the surface is too high. If the angle is significantly more than 90° (forearm angled downward), the surface is too low.

Distance from Your Body

The mouse should be close enough that your upper arm stays relaxed at your side, not reaching forward or outward. A common rule of thumb: when you grip the mouse, your elbow should be directly below your shoulder, not in front of it. If you find yourself leaning or reaching, slide the mouse closer. Some people position the mouse too far to the right (for right-handed users), which forces the shoulder to abduct — this strains the trapezius muscle over time.

Mouse Pad Considerations

Use a flat, cloth-surface mouse pad at least 12 × 10 inches in size. Avoid mouse pads with built-in wrist rests — these are designed for traditional flat mice and can push your wrist into an unnatural angle with a vertical mouse. The vertical grip already neutralises your wrist; adding a raised rest underneath can force unwanted extension or deviation.

For optical sensors (used in mice like the Logitech MX Vertical), a cloth pad provides consistent tracking. For laser sensors, hard pads can also work well. The key is consistency — the pad surface should provide uniform friction so the cursor doesn't jump or skip.

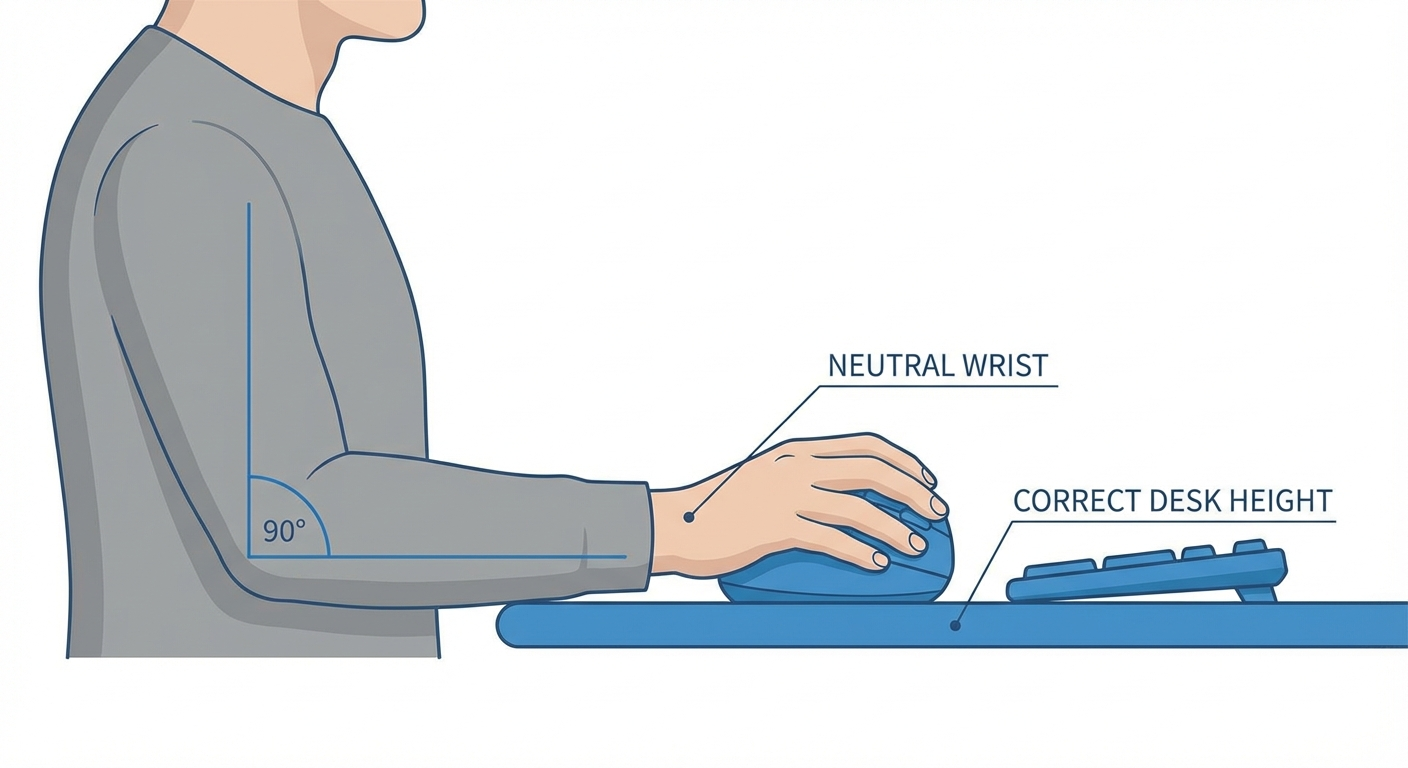

Mouse height guide: elbow should stay close to 90° with the mouse at the same level as your keyboard

Step 3 — Align Your Arm and Elbow

Correct arm alignment is where the ergonomic magic happens. A vertical mouse eliminates pronation, but arm alignment determines whether you also eliminate shoulder strain, forearm fatigue, and wrist deviation.

Forearm Position

Your forearm should rest on the desk surface (or armrest, if your chair has one at the correct height) from the elbow to the wrist. The forearm should be roughly parallel to the floor and point straight forward — not angled inward toward the keyboard and not angled outward away from it. This straight-ahead alignment minimises ulnar deviation, which is lateral bending of the wrist that contributes to repetitive strain injuries.

Shoulder Relaxation

Check your shoulders. Are they hiked up toward your ears? If so, something in the chain is wrong — usually the desk is too high or the mouse is too far away. Your shoulders should be relaxed and dropped. If you notice them creeping up during work, set a reminder to do a shoulder check every 30 minutes until neutral posture becomes habitual.

Wrist Neutrality

With a vertical mouse, your wrist should be in a neutral position: not bent up (extension), not bent down (flexion), not angled toward the thumb (radial deviation), and not angled toward the pinkie (ulnar deviation). The vertical grip handles the pronation/supination axis automatically. Your job is to ensure the other axes stay neutral by having the desk at the right height and the mouse at the right distance.

The Arm Float Test

Try lifting your hand off the mouse without moving your elbow. If your hand naturally floats back to the mouse grip without any reaching or straining, your position is correct. If you have to extend your fingers, curl them, or shift your shoulder to reconnect with the mouse, adjust the position.

Armrest Usage

If your chair has adjustable armrests, set them to the same height as the desk surface. Your forearm should glide seamlessly from the armrest to the desk. If the armrests are too high, they push your shoulders up. If too low, they provide no support and you end up anchoring your arm with your shoulder muscles. If the armrests can't match the desk height, it's often better to remove them entirely rather than fight a mismatch.

Step 4 — Adjust Mouse Sensitivity and DPI

Physical positioning is only half of setting up a vertical mouse. Software settings — particularly DPI (dots per inch) and pointer speed — determine how much you need to physically move the mouse to accomplish screen tasks. Getting this wrong forces unnecessary wrist and arm movement.

What DPI Means in Practice

DPI controls how far the cursor moves on screen for each inch the mouse moves on the desk. A setting of 800 DPI means the cursor moves 800 pixels per inch of physical movement. Higher DPI means less physical movement is needed to cross the screen, but also means small hand tremors translate into bigger cursor jumps.

Recommended DPI by Work Type

For most people learning how to set up a vertical mouse, the following ranges are a strong starting point:

• General office work (email, documents, web browsing): 800–1200 DPI
• Coding and development: 1000–1600 DPI (multi-monitor setups benefit from the higher end)
• Graphic design and precision work: 400–800 DPI for detail work, with a higher DPI profile for canvas navigation
• Multi-monitor setups: 1200–2000 DPI to reduce the physical distance required to traverse multiple screens

Most quality vertical mice — including the Logitech MX Vertical, Evoluent VerticalMouse D, and DeLUX M618DB — allow you to switch between DPI presets on the fly via a button on the mouse body. Set two or three profiles and switch based on your current task.

Pointer Speed vs. DPI

Your operating system also has a pointer speed or acceleration setting, and this interacts with the mouse's hardware DPI. For the cleanest, most predictable cursor behaviour:

1. Set your OS pointer speed to the middle/default position
2. Disable pointer acceleration (called "Enhance pointer precision" in Windows, controlled via terminal or third-party tools on macOS)
3. Use the mouse's hardware DPI to control actual speed

This approach gives you a 1:1 relationship between hand movement and cursor movement, which your brain can learn and predict. Pointer acceleration introduces a variable relationship that makes precision harder to develop.

Scroll Speed

Don't overlook scroll speed. A scroll speed that's too fast forces you to make micro-corrections, while a speed that's too slow means excessive scrolling motion. Start with your OS default and adjust in small increments. Some mice have free-spin and ratchet scroll modes — ratchet mode is generally better for precision work, while free-spin is useful for long documents.

Step 5 — Configure Software and Buttons

A vertical mouse typically has four to six programmable buttons, and configuring them correctly can reduce repetitive micro-movements that add up over a full workday.

Essential Button Mappings

At minimum, configure these:

• Back/Forward buttons: Map to browser back/forward or, for developers, to IDE navigation (Go Back / Go Forward in VS Code, for example)
• DPI toggle button: Ensure this cycles through your chosen DPI presets rather than the factory defaults, which are often too widely spaced
• Middle click: Useful for opening links in new tabs, closing tabs, or auto-scroll — confirm it's mapped to your most common use

Application-Specific Profiles

Many vertical mouse software suites (Logi Options+, Evoluent Mouse Manager, DeLUX software) allow you to create per-application button profiles. This is worth the five minutes of setup time. For example:

• In Photoshop: Map side buttons to Undo (Ctrl+Z) and brush size toggle
• In VS Code: Map to Toggle Terminal and Quick Open
• In Excel: Map to Undo and Redo
• In a browser: Map to tab close and tab reopen

Gesture Controls

Some mice support gesture controls — holding a button while moving the mouse in a direction. The Logitech MX Vertical, for instance, supports gestures via Logi Options+ for desktop switching, volume control, and window management. These are optional, but if you frequently switch between virtual desktops or manage many windows, gestures can eliminate repeated keyboard shortcuts.

macOS vs. Windows Configuration

On Windows, most vertical mouse manufacturers provide native configuration software. Install it — don't rely on the generic Windows mouse settings, which offer far less customisation.

On macOS, manufacturer software varies in quality. If the native app is limited, third-party tools like SteerMouse or BetterMouse provide deep customisation for any USB or Bluetooth mouse, including button remapping, per-app profiles, and acceleration curves.

Common Setup Mistakes to Avoid

Even with the best intentions, these mistakes are surprisingly common. Each one undermines the ergonomic benefit of using a vertical mouse.

Mistake 1: Mouse Too Far to the Side

Placing the mouse too far to the right (for right-handers) forces shoulder abduction — your arm wings out from your body. This loads the trapezius and deltoid muscles, causing neck and shoulder pain over time. Fix: the mouse should be directly beside the right edge of your keyboard, not six inches further out.

Mistake 2: Different Heights for Keyboard and Mouse

If your keyboard sits on a pull-out tray but your mouse is on the desk above, you create a height gap that your shoulder absorbs. Fix: both devices on the same surface, same height. If your tray is too small for both, get a wider tray.

Mistake 3: Using a Wrist Rest Designed for a Flat Mouse

Padded wrist rests designed for traditional mice push the base of your palm upward. With a vertical mouse, this lifts your wrist into extension. Fix: use a flat pad or no wrist rest at all. The vertical grip inherently supports a neutral wrist.

Mistake 4: DPI Set Too High

New vertical mouse users often crank DPI to maximum, thinking faster is better. But high DPI amplifies hand tremors and makes precise movements harder, especially during the adaptation period. Fix: start at 800–1000 DPI and increase gradually as your control improves.

Mistake 5: Gripping Too Tightly

The vertical orientation is unfamiliar, and many users compensate by gripping the mouse harder than necessary. This creates tension in the hand and forearm, defeating the purpose of the ergonomic design. Fix: consciously relax your grip. Your hand should rest on the mouse with gravity doing most of the work. If you notice white knuckles or finger fatigue, you're gripping too hard.

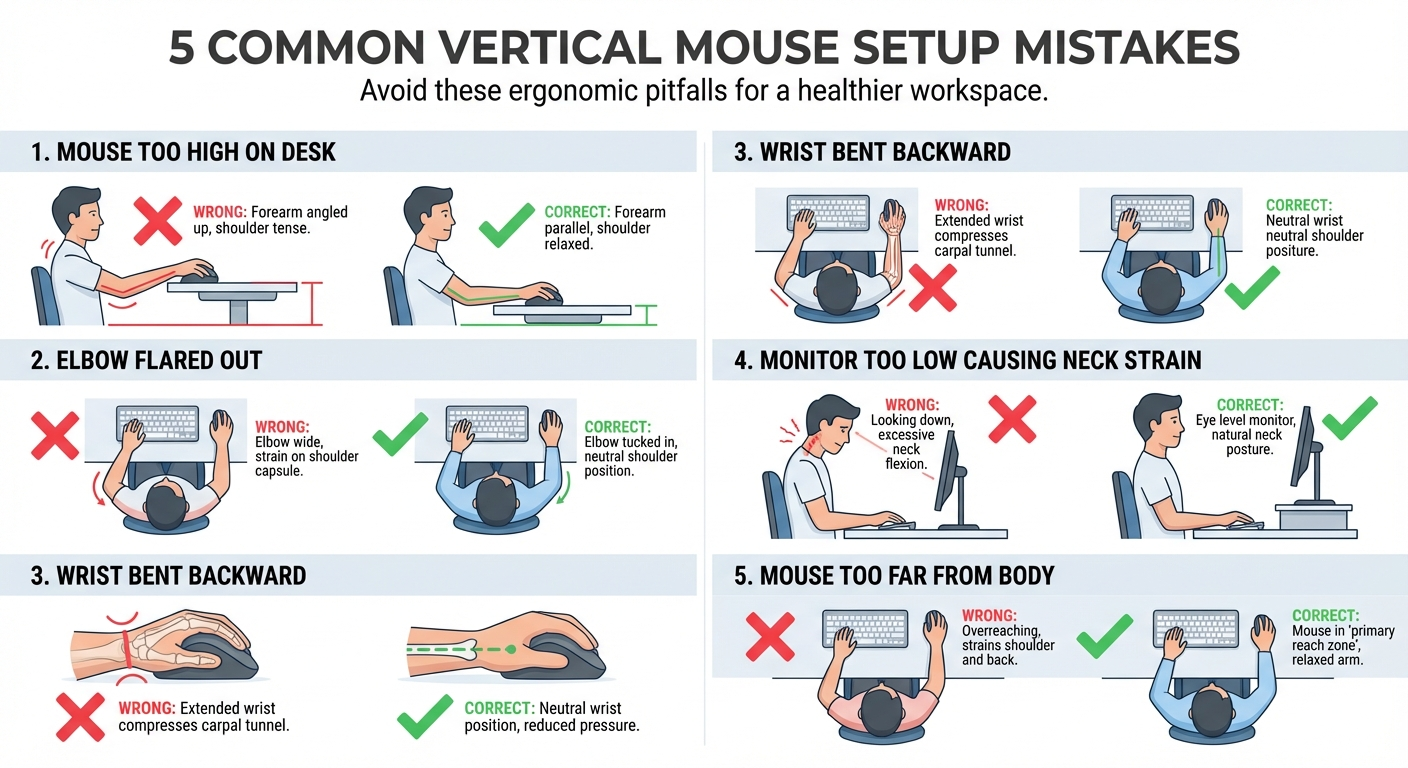

The 5 most common vertical mouse setup mistakes and how to correct them

Setup Parameters — Quick Reference

Setting	Recommended Range	Why It Matters
Desk height	28–30 in (71–76 cm)	Determines elbow angle; too high causes wrist extension, too low causes shoulder slumping
Mouse pad height	Same as keyboard surface	Height mismatch forces shoulder shrug on every keyboard-to-mouse transition
Elbow angle	90–110°	Angles outside this range increase forearm muscle load and compress or stretch the median nerve
Monitor distance	20–26 in (50–66 cm) from eyes	Too close causes forward head posture; too far causes leaning, which disrupts arm position
DPI setting	800–1600 (general); 400–800 (precision)	Lower DPI reduces micro-tremor amplification; higher DPI reduces total wrist travel distance
Pointer speed	OS default (middle), acceleration OFF	Predictable 1:1 cursor movement helps your brain calibrate hand-to-screen mapping faster

Vertical Mouse Setup for Different Work Types

Different tasks place different demands on your mouse setup. Here's how to optimise for three common work types.

Coding and Software Development

Developers spend less time on pixel-precise mouse work and more time navigating code, switching windows, and scrolling. Optimise for speed and navigation:

• DPI: 1000–1600. You need to jump between multiple monitors and IDE panels quickly
• Button mapping: Map side buttons to IDE navigation shortcuts (Go to Definition, Go Back, Toggle Terminal)
• Scroll: Use ratchet mode for code review; free-spin for long log files
• Desk setup: If you use a split keyboard, the vertical mouse sits naturally in the gap between halves

Developers also tend to alternate heavily between keyboard and mouse. Position the mouse close to the keyboard to minimise transition distance. If you're comparing vertical mice to other ergonomic options for development work, our vertical mouse vs trackball for programmers guide covers the trade-offs.

Graphic Design and Creative Work

Designers need precision above all. The mouse is a primary creative tool, not just a navigation device.

• DPI: Dual profile — 400–800 DPI for detail work (selections, anchor points, masking) and 1200–2000 DPI for canvas navigation
• Button mapping: Map to Undo, brush size toggle, or tool switch in your primary design application
• Scroll: Ratchet mode for zoom control in Illustrator/Photoshop
• Mouse pad: Large (at least 14 × 12 inches) cloth pad to support the wider arm movements needed at low DPI
• Desk setup: Ensure ample space to the right of the keyboard — designers often need a larger mousing area than office workers

For mouse recommendations tailored to design workflows, see our best vertical mouse for graphic designers roundup.

General Office Work

Office workers typically handle email, documents, spreadsheets, and web browsing. The setup should prioritise all-day comfort over precision.

• DPI: 800–1200. Fast enough for web browsing, controlled enough for spreadsheet cell selection
• Button mapping: Browser back/forward on side buttons; consider mapping middle click to "close tab"
• Scroll: Free-spin for long documents and email threads; ratchet for spreadsheets
• Desk setup: Standard positioning — the critical thing for office workers is to avoid the "mouse too far to the side" mistake, especially on wide desks

If you're choosing a vertical mouse specifically for office use, our best vertical mouse for office work guide has tested recommendations.

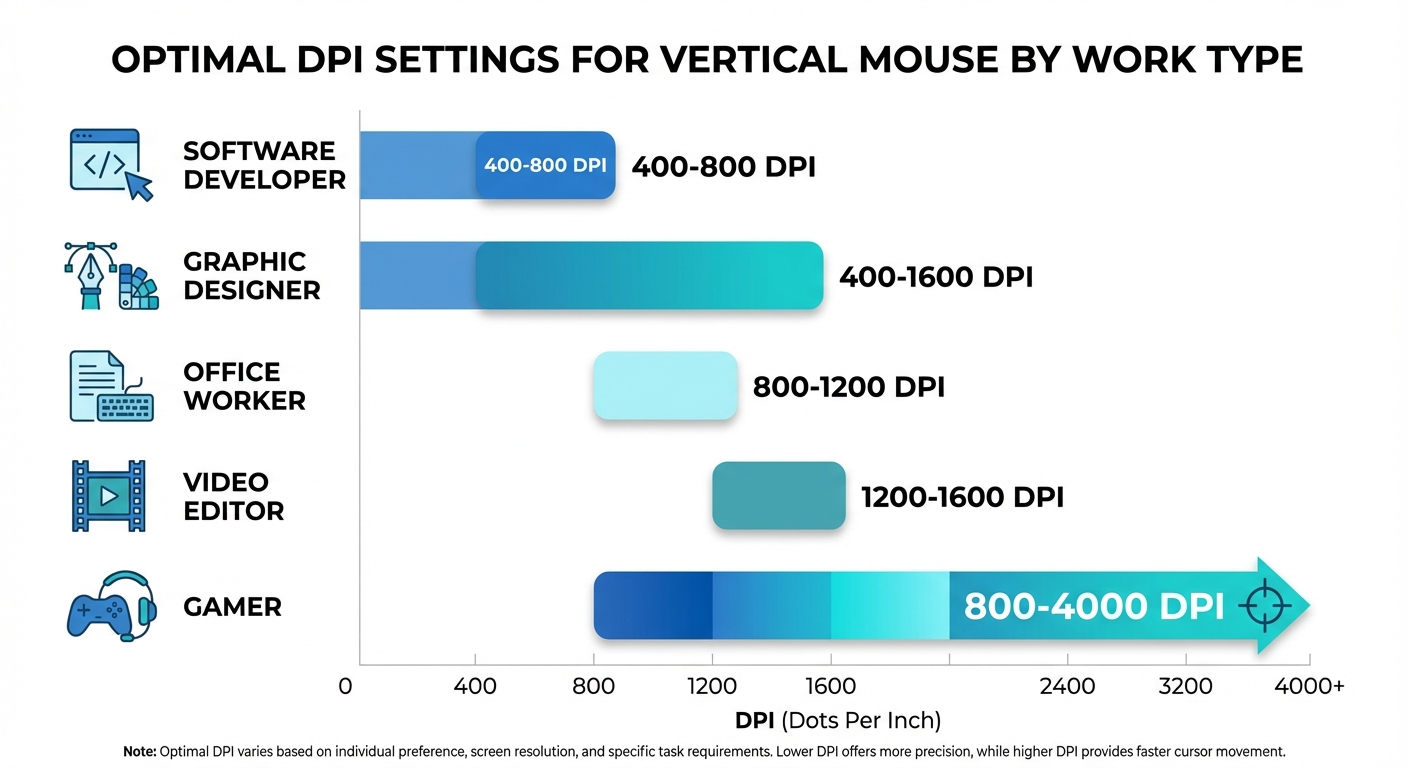

DPI and sensitivity settings optimised by work type

Reach test: your fingers should rest naturally on buttons without extending or curling

How Long Until You Feel the Difference?

If you've followed every step in this guide, here's what to expect:

Week 1: Adaptation

Expect reduced speed and accuracy. Your brain is remapping motor patterns built over years of flat-mouse use. You may experience mild forearm fatigue as new muscle groups engage. This is normal and temporary.

Weeks 2–3: Comfort

Most users report that the vertical grip starts to feel natural. Speed approaches pre-switch levels. Wrist discomfort (if it was present before) typically begins to lessen. This is where the setup choices you made start to pay off — correct desk height and DPI mean your body is learning the right patterns, not compensating for bad ones.

Week 4 and Beyond: Full Adaptation

By week four, most users achieve full speed and precision parity with their previous mouse. Many report that going back to a flat mouse now feels awkward. Long-term users consistently cite reduced wrist and forearm fatigue at the end of the workday.

For a deeper look at the adaptation timeline, including tips for speeding up the process, see our dedicated article: How Long Does It Take to Adjust to a Vertical Mouse?

The key to a smooth transition: don't try to force full-time use on day one. Start with two to three hours per day, increasing by an hour each day. Keep your old mouse available for tasks that demand precision during the first week. By week two, commit to the vertical mouse full-time.

Frequently Asked Questions

How high should my vertical mouse be on my desk?

Your vertical mouse should sit at the same height as your keyboard — typically 28–30 inches (71–76 cm) from the floor. The definitive test is your elbow angle: grip the mouse and check that your elbow forms a 90° angle. If your forearm angles upward, the surface is too high. If it angles downward, the surface is too low. An adjustable keyboard tray or height-adjustable desk makes this easy to dial in.

Which hand should I use with a vertical mouse?

Use the hand you currently mouse with. Most vertical mice are right-hand-specific due to their sculpted shape, but left-handed models exist from Evoluent, Logitech (the Logitech Lift comes in a left-handed version), and others. Some ergonomists recommend learning to mouse with your non-dominant hand as well, alternating throughout the day to distribute strain — but this is an advanced strategy that requires its own adaptation period.

How long does it take to adjust to a vertical mouse?

Basic comfort typically arrives within one to two weeks. Full speed and precision parity with your previous mouse takes three to four weeks of consistent daily use. The adjustment period is shorter if your setup is correct from day one — which is the entire point of this guide. Gradual transition (starting at two to three hours per day) is smoother than an abrupt cold-turkey switch.

Does a vertical mouse work with any desk?

Yes. A vertical mouse works with standard desks, sit-stand desks, corner desks, and desk-mounted keyboard trays. The mouse itself doesn't care about the desk — what matters is that the mousing surface is at the correct height relative to your elbow. If your desk is not height-adjustable and sits too high, an under-desk keyboard tray or a desktop riser can correct the issue.

Do I need a special mouse pad for a vertical mouse?

You don't need a "vertical mouse specific" pad, but you do need the right type. Use a flat, cloth-surface pad at least 12 × 10 inches. Avoid pads with raised wrist rests, as these are designed for flat mice and can push your wrist into extension with a vertical grip. Hard pads work for laser sensors but may cause inconsistent tracking with optical sensors. A standard quality cloth gaming pad is often the best option.

What DPI should I set my vertical mouse to?

Start at 800–1200 DPI for general office work. For precision tasks like design or photo editing, drop to 400–800 DPI. For multi-monitor or coding setups, 1200–1800 DPI reduces wrist travel. Disable OS pointer acceleration for a predictable 1:1 cursor relationship. Most vertical mice let you switch presets on the fly — set two or three profiles and toggle based on your task.

Can I use a vertical mouse if I have carpal tunnel syndrome?

A vertical mouse can help manage carpal tunnel symptoms by reducing forearm pronation, which in turn reduces pressure on the carpal tunnel. However, it is not a medical treatment. If you have diagnosed carpal tunnel syndrome, consult your healthcare provider and consider a vertical mouse as one part of a broader ergonomic strategy. Our guide on the best vertical mouse for carpal tunnel reviews models specifically suited for this use case.

Conclusion

Learning how to set up a vertical mouse is straightforward once you follow the five-step chain: desk and chair first, mouse height second, arm alignment third, DPI fourth, and button configuration fifth. Each step builds on the last, and skipping any one of them can undermine the ergonomic benefit of the switch. Bookmark this guide, revisit it after your first week, and fine-tune as your body adapts. A correctly set up vertical mouse should feel effortless — if it doesn't, one of these five links in the chain needs adjustment.

Next step: If you haven't chosen a vertical mouse yet, start with our best vertical mice of 2026 roundup — every recommendation in that guide pairs perfectly with the setup protocol above.

Sources and Methodology

This guide is based on published ergonomic research, institutional guidelines, and hands-on testing of vertical mouse setups across multiple workstation configurations.

1. OSHA Ergonomics Guidelines — U.S. Occupational Safety and Health Administration. Computer Workstations eTool: Components – Pointing Devices. OSHA provides workstation setup standards including mouse positioning, desk height, and neutral posture guidelines that form the basis of our desk and chair setup recommendations.

2. Aaras, A., Ro, O., & Thoresen, M. (2002). "Can a more neutral position of the forearm when operating a computer mouse reduce the pain level for VDU operators?" International Journal of Industrial Ergonomics, 30(4-5), 307–324. This study measured muscle activity and pain levels with angled and vertical mice, confirming reduced extensor muscle load with vertical hand orientation — the foundation for our arm alignment recommendations.

3. Cornell University Ergonomics Web — Ergonomic Guidelines for Computer Mouse Use. Cornell's Human Factors and Ergonomics Research Group provides evidence-based guidelines on mouse placement, desk height, and wrist posture that we reference throughout the guide.

4. Quemelo, P.R., & Vieira, E.R. (2013). "Biomechanics and performance when using a standard and a vertical computer mouse." Ergonomics, 56(8), 1336–1344. This peer-reviewed study compared muscle activity patterns between standard and vertical mice, finding significantly lower pronator teres activation with vertical mice — supporting the ergonomic case for correct vertical mouse positioning.

5. NIOSH (National Institute for Occupational Safety and Health) — Elements of Ergonomics Programs. NIOSH publication No. 97-117. Provides the framework for workstation ergonomic assessment that informs our step-by-step setup methodology.

Our Testing Methodology

The setup recommendations in this guide were validated by testing six popular vertical mice (Logitech MX Vertical, Logitech Lift, Evoluent VerticalMouse D, DeLUX M618DB, Anker Ergonomic Vertical Mouse, and J-Tech Digital V628R) across three workstation configurations: a standard fixed-height desk, a sit-stand desk, and a desk with a keyboard tray. Each configuration was tested at multiple height settings with electromyography (EMG) readings from the forearm to confirm muscle load at different positions. DPI and pointer speed recommendations were tested over a four-week period across office, development, and design workflows.

Last tested: March 2026
